Create scenarios and do sweeps

This tutorial utilizes ParameterizedCalls. The tutorial covering them is located here and should be completed first.

What is a scenario or sweep?

A scenario (sweep) is a set of hyperparameter values that will be applied to a frame. One can think of them as "what if" scenarios/simulations.

Hyperparameter values in a scenario are arbitrary. Every scenario has its own unique set of hyperparameter values that may or may not have any relation to other scenarios, depending on how a user wants to use them.

The hyperparameter values in a scenario are always applied last to ensure they have final say in configuration.

In emodpy-workflow, scenarios are defined in a Python file with a specific format. This gives the user maximum flexibility in defining their scenarios while ensuring they can be understood by the run command. These files are often called "sweep files".

Making scenarios

The following is an exact requirement for the starting point of a sweep file to be used with a frame of choice with one blank scenario (with comments noting details of usage):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
frame_name = FILL_IN_NAME_OF_FRAME_TO_USE
# A sweep python file must contain a 'parameter_sets' attribute, which
# is a dict with keys being names of frames and values being dicts of
# param_name:value entries OR a generator of such dicts
parameter_sets = {
    # This key indicates the contained information is for building off
    # the specified frame
    frame_name: {
        # Each dict in 'sweeps' list is a set of param: value overrides
        # to be applied - a scenario. Note that the parameter lists are
        # arbitrary. Each scenario can include as many or few parameters
        # as you want. One experiment will be created per entry in 'sweeps'
        'sweeps': [
            # Optional: A provided 'experiment_name' in a sweep entry will
            # name the corresponding experiment. Default experiment name is
            # the name of the frame.
            {}  # This is an entirely blank scenario entry
        ]
    }
}

To modify the above for practical use requires:

  • filling in the name of the frame to use
  • filling in one or more sets of hyperparameters to modify

The following is a basic creates four scenarios on top of the baseline frame, the fourth of which makes no changes.

Copy/paste it into a file named sweeps.py in your project directory.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
frame_name = 'baseline'
parameter_sets = {
    frame_name: {
        'sweeps': [
            {'experiment_name': 'coital_act_rate_COMMERCIAL_low',    'coital_act_rate--COMMERCIAL': 0.001},
            {'experiment_name': 'coital_act_rate_COMMERCIAL_medium', 'coital_act_rate--COMMERCIAL': 0.005},
            {'experiment_name': 'coital_act_rate_COMMERCIAL_high',   'coital_act_rate--COMMERCIAL': 0.01},
            {'experiment_name': 'coital_act_rate_COMMERCIAL_standard'},
        ]
    }
}

Using scenarios

Sweep files are inputs to the run command. They are optional. Not specifying one is equivalent to running a frame as-is (no changes).

When specified as an input to run, one experiment is created per 'sweeps' entry, each containing one simulation per (calibrated) parameterization in the sample file (if provided). Otherwise, one simulation is contained per experiment.

The following command utilizes the above sweeps file that varies hyperparameter coital_act_rate--COMMERCIAL (with no samples).

Since there are four sweep entries, the command will generate: one suite of four experiments of one simulation, or 1 * 4 * 1 = 4 simulations in total.

1
python -m emodpy_workflow.scripts.run -f baseline -N commercial_sex_scenarios -o output -p ContainerPlatform -w sweeps.py

Downloading scenario output file(s)

Output file(s) from completed simulation(s) can be obtained via the download command. The following will download the InsetChart.json file from each simulation in each experiment in the prior run execution:

1
python -m emodpy_workflow.scripts.download -d output/InsetChart.json -r output/experiment_index.csv -p ContainerPlatform

Full documentation of the download command is located here.

Plotting results

The built-in plot_inset_chart_mean_compare command is able to plot several experiments of InsetChart.json data for inter-comparison. The following will plot data from the files just downloaded, one colored line per experiment (its average of one simulation each):

1
python -m emodpy_hiv.plotting.plot_inset_chart_mean_compare output/coital_act_rate_COMMERCIAL_low--0/InsetChart/ output/coital_act_rate_COMMERCIAL_medium--1/InsetChart/ output/coital_act_rate_COMMERCIAL_high--2/InsetChart/ -o plots

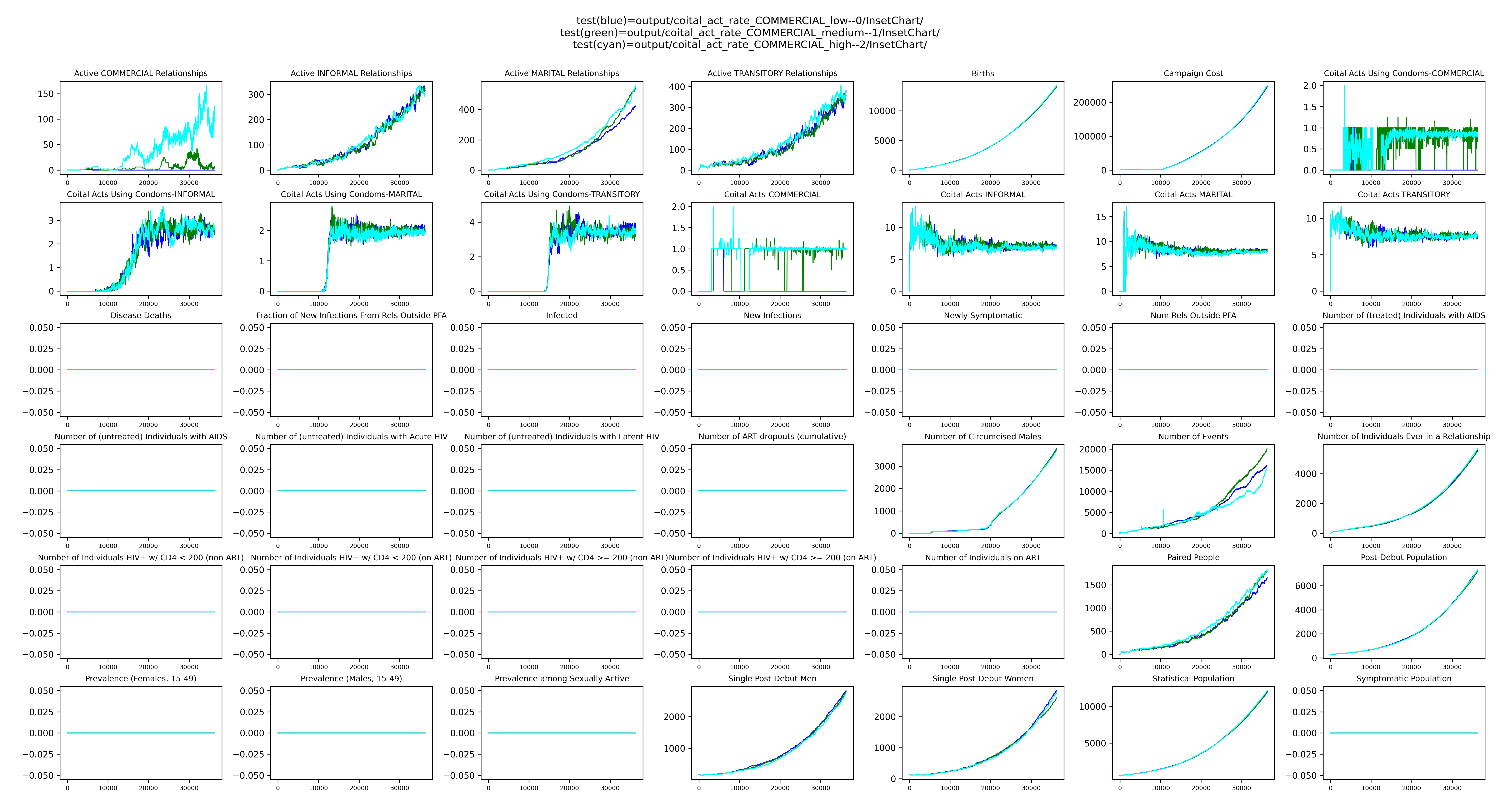

A generated .png file will be located at: plots/InsetChart_Compare.png for inspection. For example,
