Run EMOD

Objective

The goal of this tutorial is for you to learn how to run a single simulation of EMOD-HIV using emodpy-workflow. There are many ways to run EMOD:

  • From the command line
  • Using emodpy-hiv
  • Using emodpy-workflow
  • On an HPC
  • On your laptop
  • As part of a parameter calibration
  • As a parameter sweep

However, you will frequently want to run a single simulation when you creating different behaviors in your simulation or while debugging.

Prerequisites

To run EMOD per the instructions of this tutorial, you need to have done the followinng:

Control how and where EMOD runs

Before we can start using the "run" command, we first need to know where we can control the what and where EMOD runs. The manifest.py file is used by emopdy-workflow to know what EMOD executable binary to use, to specify a container for the executable binary to run in, to specify any simulation post processing scripts, etc. The idmtools.ini file is used to specify how EMOD is run on different platforms, where a "platform" is a computing device like an HPC or laptop.

View manifest.py

  1. In the root of your project directory, open the manifest.py file.
  2. On about line 39, you should see a variable called executable_path. This tells emodpy-workflow where to get the EMOD executable binary.
  3. Just below that you should also see a variable called asset_collection_of_container. This is variable is used by emodpy-workflow to know what container to run EMOD in. (Containers reduce your need to install everything needed to run EMOD.)
  4. For more information see manifest.py.

View idmtools.ini

  1. In the root of your project directory, open the idmtools.ini file.

  2. Towards the top of the file, you should see something similar to the following:

    1
2
3
    [ContainerPlatform]
type          = Container
job_directory = emodpy-jobs

  3. This tells emodpy-workflow that there is a platform called ContainerPlatform that is of type Container and that simulation jobs should go in to the emodpy-jobs directory.

  4. For more information see idmtools.ini.

Create a results directory

Since we will be running EMOD multiple times, it is handy to put the results into their own directory.

  1. Execute the following command in the root of your project (the directory that contains the manifest.py file):

    1
    mkdir results

    This should create a directory called results in your project directory.

Using the run command

To run EMOD, we will use the emodpy-workflow run command.

  1. Execute the following command in the root of your project:

    1
    python -m emodpy_workflow.scripts.run -h

    This should produce output similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
    usage: run.py [-h] [-s SAMPLES_FILE] -N SUITE_NAME -f FRAMES [-d DOWNLOAD_FILENAMES] -o OUTPUT_DIR -p PLATFORM
            [-w SWEEP]

optional arguments:
-h, --help            show this help message and exit
-s SAMPLES_FILE, --samples SAMPLES_FILE
                        csv file with base samples to use for simulation generation. Runs one sim per frame with
                        configs as-is if not provided.
-N SUITE_NAME, --suite-name SUITE_NAME
                        Name of suite for experiments to be run within (Required).
-f FRAMES, --frames FRAMES
                        Comma-separated list of model frames to run (Required).
-d DOWNLOAD_FILENAMES, --files DOWNLOAD_FILENAMES
                        Filenames to download from scenario simulations. Paths relative to simulation directories.
                        Comma-separated list if more than one (Default: do not download files)
-o OUTPUT_DIR, --output-dir OUTPUT_DIR
                        Directory to write receipt to (always) and scenario output files (if downloading).
-p PLATFORM, --platform PLATFORM
                        Platform to run simulations on (Required).
-w SWEEP, --sweep SWEEP
                        Python module to load with a sweep definition to generate extra experiments with (Default: no
                        sweeping).

  2. For our purposes, we are going to focus on the following arguments:

    • suite name - This is the name you give to a collection of experiments, 'my_first_suite'.
    • frame - This is the name of the frame who's configuration is what you want to use. In our case, it will be 'baseline'
    • output directory - The path of the directory to put the data for your run, say 'results/my_first_run'.
    • platform - This is the name of a platform defined in your 'idmtools.ini' file. We will be using 'ContainerPlatform'.

  3. Execute the following command:

    1
    python -m emodpy_workflow.scripts.run -N my_first_suite -f baseline -o results/my_first_run -p ContainerPlatform

    You should see output similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
    INI File Found: C:\work\emodpy-training\idmtools.ini

Initializing ContainerPlatform with:
{
"job_directory": "emodpy-jobs"
}
Creating Suites: 100%|████████████████████████████████████████████████████████████████████████| 1/1 [00:00<?, ?suite/s]
Creating Experiments:   0%|                                                              | 0/1 [00:00<?, ?experiment/s]>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Total parameter access counts:
{}
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Creating Experiments: 100%|██████████████████████████████████████████████████████| 1/1 [00:06<00:00,  6.50s/experiment]
Initializing objects for creation: 0simulation [00:00, ?simulation/s]>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Total parameter access counts:
{}
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Commissioning Simulations: 100%|█████████████████████████████████████████████████| 1/1 [00:00<00:00, 17.86simulation/s]
job_directory: C:\work\emodpy-training\emodpy-jobs
suite: 2cf29edc-6b4d-459b-9542-3eae5c59a151
experiment: 8ae683e4-8af6-4cd9-b8a3-5c63a5a10a17

Experiment Directory:
C:\work\emodpy-training\emodpy-jobs\my_first_suite_2cf29edc-6b4d-459b-9542-3eae5c59a151\my_first_suite_8ae683e4-8af6-4cd9-b8a3-5c63a5a10a17

Container ID: c3a6a8de63be

You may try the following command to check simulations running status:
idmtools container status 8ae683e4-8af6-4cd9-b8a3-5c63a5a10a17
Wrote run.py receipt to: results/my_first_run\experiment_index.csv
Done with model experiment creation.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
    INI File Found: /home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/idmtools.ini

Initializing ContainerPlatform with:
{
"job_directory": "emodpy-jobs"
}
Creating Suites: 100%|███████████████████████████████████████████████████████████████████████████████████| 1/1 [00:00<00:00, 1602.10suite/s]
Creating Experiments:   0%|                                                                                   | 0/1 [00:00<?, ?experiment/s]>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Total parameter access counts:
{}
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Creating Experiments: 100%|███████████████████████████████████████████████████████████████████████████| 1/1 [00:05<00:00,  5.15s/experiment]
Initializing objects for creation: 0simulation [00:00, ?simulation/s]>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Total parameter access counts:
{}
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Commissioning Simulations: 100%|██████████████████████████████████████████████████████████████████████| 1/1 [00:00<00:00, 67.47simulation/s]
job_directory: /home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/emodpy-jobs
suite: 38dbabe0-e7f7-49ee-a8f3-983f3657b01d
experiment: 07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a

Experiment Directory:
/home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/emodpy-jobs/my_first_suite_38dbabe0-e7f7-49ee-a8f3-983f3657b01d/my_first_suite_07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a

Container ID: c4d227306f49

You may try the following command to check simulations running status:
idmtools container status 07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a
Wrote run.py receipt to: results/my_first_run/experiment_index.csv
Done with model experiment creation.

    Note

    This means that the simulations have been submitted to start running. It does not mean they are done.

Get status on your experiment

Notice how in the last four lines of the output that there is information about finding the status of your output. In this case, the following line

1
idmtools container status 8ae683e4-8af6-4cd9-b8a3-5c63a5a10a17

1
idmtools container status 07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a

says get status on experiment with the given ID.

If you execute that line, you should see something similar to:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
INI File Found: C:\work\emodpy-training\idmtools.ini

Experiment Directory:
c:/work/emodpy-training/emodpy-jobs/my_first_suite_2cf29edc-6b4d-459b-9542-3eae5c59a151/my_first_suite_8ae683e4-8af6-4cd
9-b8a3-5c63a5a10a17

Simulation Count: 1

SUCCEEDED (1)
FAILED (0)
RUNNING (0)
PENDING (0)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
INI File Found: /home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/idmtools.ini

Experiment Directory:
/home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/emodpy-jobs/my_first_suite_38dbabe0-e7f7-49ee-a8f3-983f3657b01d/my_first_
suite_07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a

Simulation Count: 1

SUCCEEDED (1)
FAILED (0)
RUNNING (0)
PENDING (0)

Note

This only works when using the Container Platform. To see status when using other platforms, please see the Command Line Interface documentation for your platform.

View the files produced when running an experiment

When using the Container and SLURM platforms, you can access the directories where the experiments and simulations are running. In our case, we are using the Container Platform and our idmtools.ini file told emodpy-workflow to put the files into a local folder called "emodpy-jobs". If we navigate into this folder, we can see all of the files associated with running the experiment and simulations. Let's go investigate.

  1. From the main project directory execute the following commands:

    1
2
    cd emodpy-jobs
dir

    1
2
    cd emodpy-jobs
ls -l

    You should see something similar to:

    1
2
3
4
5
    Directory of C:\work\my_training\my_project\emodpy-jobs

09/02/2025  01:30 PM    <DIR>          .
09/02/2025  01:30 PM    <DIR>          ..
09/02/2025  01:30 PM    <DIR>          my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31

    1
2
    total 4
drwxrwxr-x 3 dbridenbecker dbridenbecker 4096 Sep  5 12:32 my_first_suite_38dbabe0-e7f7-49ee-a8f3-983f3657b01d

    Notice the directory my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31 starts with the name we gave the suite.

  2. Look in the the suite directory by executing commands similar to the following (your directory name is likely different):

    1
2
    cd my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31
dir

    1
2
    cd my_first_suite_38dbabe0-e7f7-49ee-a8f3-983f3657b01d
ls -l

    You should see something similar to the following:

    1
2
3
4
5
6
    Directory of C:\work\my_training\my_project\emodpy-jobs\my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31

09/02/2025  01:30 PM    <DIR>          .
09/02/2025  01:30 PM    <DIR>          ..
09/02/2025  01:30 PM               484 metadata.json
09/02/2025  01:30 PM    <DIR>          my_first_suite_857c15be-a4b9-4d46-86f5-d0c0f9a2fbe5

    1
2
3
    total 8
-rw-rw-r-- 1 dbridenbecker dbridenbecker  515 Sep  5 12:32 metadata.json
drwxrwxr-x 4 dbridenbecker dbridenbecker 4096 Sep  5 12:32 my_first_suite_07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a

    Yes, it looks very similar, but this is the experiment directory.

  3. Look in the experiment directory by executing commands similar to the following (your directory name is likely different): === "Windows"

    1
2
    cd my_first_suite_857c15be-a4b9-4d46-86f5-d0c0f9a2fbe5
dir
    === "Linux"
    1
2
    cd my_first_suite_07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a
ls -l

    You should see something similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
    Directory of C:\work\my_training\my_project\emodpy-jobs\my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31\my_first_suite_857c15be-a4b9-4d46-86f5-d0c0f9a2fbe5

09/02/2025  01:30 PM    <DIR>          .
09/02/2025  01:30 PM    <DIR>          ..
09/02/2025  01:30 PM    <DIR>          84efd93c-b13a-4bd4-ae54-f4ac5ab7aa9d
09/02/2025  01:30 PM    <DIR>          Assets
09/02/2025  01:30 PM               229 batch.sh
09/02/2025  01:30 PM             1,006 metadata.json
09/02/2025  01:30 PM               179 run_simulation.sh
09/02/2025  01:30 PM                 0 stderr.txt
09/02/2025  01:30 PM               181 stdout.txt

    1
2
3
4
5
6
7
8
    total 24
drwxrwxr-x 3 dbridenbecker dbridenbecker 4096 Sep  5 12:32 45eefc10-bf1d-48bf-a7f0-d90d1c94bd8f
drwxrwxr-x 2 dbridenbecker dbridenbecker 4096 Sep  5 12:32 Assets
-rwxrwxrwx 1 dbridenbecker dbridenbecker  229 Sep  5 12:32 batch.sh
-rw-rw-r-- 1 dbridenbecker dbridenbecker 1067 Sep  5 12:32 metadata.json
-rwxrwxrwx 1 dbridenbecker dbridenbecker  179 Sep  5 12:32 run_simulation.sh
-rw-r--r-- 1 root          root             0 Sep  5 12:32 stderr.txt
-rw-r--r-- 1 root          root           181 Sep  5 12:32 stdout.txt

    The experiment directory will have one folder for each simulation of the experiment. In this case, there is only one simulation with ID:

    84efd93c-b13a-4bd4-ae54-f4ac5ab7aa9d

    45eefc10-bf1d-48bf-a7f0-d90d1c94bd8f

    For the most part, you do not need to know about the other files in the directory. However, the metadata.json file does contain some details about the experiment and its simulations.

  4. Look in the simulation directory 84efd93c-b13a-4bd4-ae54-f4ac5ab7aa9d

    1
2
    cd 84efd93c-b13a-4bd4-ae54-f4ac5ab7aa9d
dir

    1
2
    cd 45eefc10-bf1d-48bf-a7f0-d90d1c94bd8f
ls -l

    You should see something similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
    Directory of C:\work\my_training\my_project\emodpy-jobs\my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31\my_first_suite_857c15be-a4b9-4d46-86f5-d0c0f9a2fbe5\84efd93c-b13a-4bd4-ae54-f4ac5ab7aa9d

09/02/2025  01:30 PM    <DIR>          .
09/02/2025  01:30 PM    <DIR>          ..
09/02/2025  01:30 PM    <SYMLINKD>     Assets [..\Assets]
09/02/2025  01:30 PM           206,144 campaign.json
09/02/2025  01:30 PM             7,226 config.json
09/02/2025  01:32 PM                 2 job_status.txt
09/02/2025  01:30 PM             9,310 metadata.json
09/02/2025  01:32 PM    <DIR>          output
09/02/2025  01:32 PM            30,139 status.txt
09/02/2025  01:30 PM                 0 stderr.txt
09/02/2025  01:32 PM           120,255 stdout.txt
09/02/2025  01:30 PM           330,404 tmpncr6smi4.json
09/02/2025  01:30 PM               762 _run.sh

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
    total 704
lrwxrwxrwx 1 dbridenbecker dbridenbecker      9 Sep  5 12:32 Assets -> ../Assets
-rw-rw-r-- 1 dbridenbecker dbridenbecker 206144 Sep  5 12:32 campaign.json
-rw-rw-r-- 1 dbridenbecker dbridenbecker   7257 Sep  5 12:32 config.json
-rw-r--r-- 1 root          root               2 Sep  5 12:34 job_status.txt
-rw-rw-r-- 1 dbridenbecker dbridenbecker   9393 Sep  5 12:32 metadata.json
drwxr-xr-x 2 root          root            4096 Sep  5 12:34 output
-rwxrwxrwx 1 dbridenbecker dbridenbecker    762 Sep  5 12:32 _run.sh
-rw-r--r-- 1 root          root           30139 Sep  5 12:34 status.txt
-rw-r--r-- 1 root          root               0 Sep  5 12:32 stderr.txt
-rw-r--r-- 1 root          root          120255 Sep  5 12:34 stdout.txt
-rw-rw-r-- 1 dbridenbecker dbridenbecker 320723 Sep  5 12:32 tmpu8tbs9qp.json

    The simulation directory is the directory where a single realization/simulation of EMOD is being run. If you have simulations that are failing or not running to completion, you should look at the stderr.txt file and the stdout.txt file. These files can contain error messages directly from the EMOD executable. Finally, the output directory contains the report data that was generated for this realization/simulation. (We will be using the download command to organize our report files, but if that becomes limiting, you can access them directly.)

    Note

    If something is failing or not working like you expect, an EMOD developer will need the contents of this directory in order to duplicate and debug the issue.

  5. View the end of the stdout.txt file.

    Use a text editor to view stdout.txt file and scroll to the bottom. You should see something similar to the following:

    1
2
3
4
5
6
7
    00:01:56 [0] [I] [Simulation] Update(): Time: 32606.4 Year: 2049.8 Rank: 0 StatPop: 102414 Infected: 529
00:01:57 [0] [I] [Simulation] Update(): Time: 32636.8 Year: 2049.9 Rank: 0 StatPop: 102636 Infected: 528
00:01:57 [0] [I] [Simulation] Finalizing 'InsetChart.json' reporter.
00:01:57 [0] [I] [Simulation] Finalized  'InsetChart.json' reporter.
00:01:57 [0] [I] [Simulation] Finalizing 'ReportHIVByAgeAndGender.csv' reporter.
00:01:57 [0] [I] [Simulation] Finalized  'ReportHIVByAgeAndGender.csv' reporter.
00:01:57 [0] [I] [Eradication] Controller executed successfully.

    The stdout.txt file contains information that EMOD can log to standard out. For example, the line that has [Simulation] Update(): Time: in it is printed each time step of the simulation. Seeing these being written out can be helpful to know that the simulation is still running. The line that contains Controller executed successfully lets us know that the simulation has finished. This file can contain warnings or error messages. This can be a great place to look when starting to debug why your simulations are not running.

  6. Go back to the project directory - my_project

    1
2
3
4
5
    cd ..
cd ..
cd ..
cd ..
cd

    1
2
3
4
5
    cd ..
cd ..
cd ..
cd ..
pwd

    You should see something similar to:

    1
    C:\work\my_training\my_project>

    1
    /home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project

    You should be back to your project directory.

View the results/my_first_run folder and the "receipt file"

In our run command, you specified the output as -o results/my_first_run.

  1. Look at the contents of the results/my_first_run folder

    1
    dir results\my_first_run

    1
    ls -l results/my_first_run

    You should see something similar to the following:

    1
2
3
4
5
    Directory of C:\work\my_training\my_project\results\my_first_run

09/02/2025  02:52 PM    <DIR>          .
09/02/2025  02:52 PM    <DIR>          ..
09/02/2025  01:30 PM               275 experiment_index.csv

    1
2
    total 4
-rw-rw-r-- 1 dbridenbecker dbridenbecker 309 Sep  5 12:32 experiment_index.csv

  2. Look at the contents of the results/my_first_run/experiment_index.csv

    1
    type results\my_first_run\experiment_index.csv

    1
    cat results/my_first_run/experiment_index.csv

    You should see something similar to the following:

    1
2
    index,frame,experiment_id,experiment_name,experiment_directory
0,baseline,857c15be-a4b9-4d46-86f5-d0c0f9a2fbe5,my_first_suite,C:\work\my_training\my_project\emodpy-jobs\my_first_suite_2f7f3943-0814-418a-9792-604fc7db2a31\my_first_suite_857c15be-a4b9-4d46-86f5-d0c0f9a2fbe5

    1
2
    index,frame,experiment_id,experiment_name,experiment_directory
0,baseline,07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a,my_first_suite,/home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/emodpy-jobs/my_first_suite_38dbabe0-e7f7-49ee-a8f3-983f3657b01d/my_first_suite_07c1fa36-2f8b-41f0-a7fe-1afdf5e6233a

    This file can provide you information about the experiment and where the files are located. We will use it in our next step to download the report data.

Download the results/output/reports

Now that we have seen all of the files created when running an experiment, let's get back to our project directory and get our report data.

  1. Execute the download command to see what the options are

    1
    python -m emodpy_workflow.scripts.download -h

    You should see something similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
    (env) C:\work\my_training\my_project>python -m emodpy_workflow.scripts.download -h
usage: download.py [-h] [-d FILES] [-r RECEIPT_FILE] [-s SAMPLES_FILE] [--suite-id SUITE_ID] [--exp-id EXPERIMENT_ID]
                [-o OUTPUT_DIR] -p PLATFORM

optional arguments:
-h, --help            show this help message and exit
-d FILES, --files FILES
                        Comma-separated list of simulation directory relative file paths to download (Default:
                        output\ReportHIVByAgeAndGender.csv)
-r RECEIPT_FILE, --receipt RECEIPT_FILE
                        Commissioning receipt file path. Either set -r OR (--suite-id and -o) OR (--exp-id and -o) OR
                        (-s and -o).
-s SAMPLES_FILE, --samples SAMPLES_FILE
                        Resampled parameter sets csv file of simulations to plot. Either set -r OR (--suite-id and -o)
                        OR (--exp-id and -o) OR (-s and -o).
--suite-id SUITE_ID   Id of suite to download simulations from. Either set -r OR (--suite-id and -o) OR (--exp-id
                        and -o) OR (-s and -o).
--exp-id EXPERIMENT_ID
                        Id of experiment to download simulations from. Either set -r OR (--suite-id and -o) OR (--exp-
                        id and -o) OR (-s and -o).
-o OUTPUT_DIR, --output-dir OUTPUT_DIR
                        Directory to write output into. Either set -r OR (--suite-id and -o) OR (--exp-id and -o) OR
                        (-s and -o).
-p PLATFORM, --platform PLATFORM
                        Platform to download from (Required).

  2. Execute the download command to download the InsetChart.json files

    1
    python -m emodpy_workflow.scripts.download -d "output/InsetChart.json" -r results\my_first_run\experiment_index.csv -p ContainerPlatform

    1
    python -m emodpy_workflow.scripts.download -d "output/InsetChart.json" -r results/my_first_run/experiment_index.csv -p ContainerPlatform

    In this command, we specified the following:

    • -d "output/InsetChart.json - EMOD puts the report files into a subfolder called "outputs". In this case, we want the InsetChart.json report since it contains a lot of high level statistics.
    • -r results/my_first_run/experiment_index.csv - Since we have a "receipt" file, we use it here to tell the download command where the data is.
    • -p ContainerPlatform - This tells the download command to use the Container protocol when getting data.

    You should see something similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
    INI File Found: /home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/idmtools.ini

Initializing ContainerPlatform with:
{
"job_directory": "emodpy-jobs"
}
Waiting on Experiment my_first_suite to Finish running: 100%|█████████████████████████████████████| 1/1 [00:00<00:00, 2343.19simulation/s]
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████| 1/1 [00:00<00:00, 25.25it/s]
Running Analyzer Reduces: 100%|████████████████████████████████████████████████████████████████████████████| 1/1 [00:00<00:00, 465.67it/s]
Done downloading files to: /home/internal.idm.ctr/dbridenbecker/emodpy/my_tutorial/my_project/results/my_first_run

    As you can tell, there are many ways to specify the download of the data. The how-tos can show you different ways to do it.

  3. See that a new folder was added to the `results/my_first_run:

    1
    dir results\my_first_run

    1
    ls -l results/my_first_run

    Now when we look in this folder we should see something similar to the following:

    1
2
3
4
5
6
    Directory of C:\work\my_training\my_project\results\my_first_run

09/02/2025  02:52 PM    <DIR>          .
09/02/2025  02:52 PM    <DIR>          ..
09/02/2025  01:30 PM               275 experiment_index.csv
09/02/2025  02:52 PM    <DIR>          my_first_suite--0

    1
2
3
    total 8
-rw-rw-r-- 1 dbridenbecker dbridenbecker  309 Sep  5 12:32 experiment_index.csv
drwxrwxr-x 3 dbridenbecker dbridenbecker 4096 Sep  5 15:00 my_first_suite--0

    The my_first_suite--0 directory was created.

  4. See that a folder was created with the name of the report:

    1
    dir results\my_first_run\my_first_suite--0

    1
    ls -l results/my_first_run/my_first_suite--0

    You should see something similar to the following:

    1
2
3
4
5
    Directory of C:\work\my_training\my_project\results\my_first_run\my_first_suite--0

09/02/2025  02:52 PM    <DIR>          .
09/02/2025  02:52 PM    <DIR>          ..
09/02/2025  02:52 PM    <DIR>          InsetChart

    1
2
    total 4
drwxrwxr-x 2 dbridenbecker dbridenbecker 4096 Sep  5 15:00 InsetChart

    Notice that InsetChart is the base name of the report file we requested to download.

  5. See where the data has been put by executing the following command:

    1
    dir results\my_first_run\my_first_suite--0\InsetChart

    1
    ls -l results/my_first_run/my_first_suite--0/InsetChart

    You should see something similar to the following:

    1
2
3
4
5
    Directory of C:\work\my_training\my_project\results\my_first_run\my_first_suite--0\InsetChart

09/02/2025  02:52 PM    <DIR>          .
09/02/2025  02:52 PM    <DIR>          ..
09/02/2025  02:52 PM           300,997 InsetChart_sample00000_run00001.json

    1
2
    total 296
-rw-rw-r-- 1 dbridenbecker dbridenbecker 300997 Sep  5 15:00 InsetChart_sample00000_run00001.json

    The directory should contain one file for each simulation of the experiment. In this case, there is only one.

Plot the results

Now that we have our data downloaded, let's plot the data to see what happened in the simulation.

  1. Execute the following command to see what options are available when plotting InsetChart.

    1
    python -m emodpy_hiv.plotting.plot_inset_chart -h

    You should see something similar to the following:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
    (env) C:\work\my_training\my_project>python -m emodpy_hiv.plotting.plot_inset_chart -h
usage: plot_inset_chart.py [-h] [-d [DIR]] [-t [TITLE]] [-o OUTPUT]
                        [reference] [comparison1] [comparison2] [comparison3]

positional arguments:
reference             Reference InsetChart filename
comparison1           Comparison1 InsetChart filename
comparison2           Comparison2 InsetChart filename
comparison3           Comparison3 InsetChart filename

optional arguments:
-h, --help            show this help message and exit
-d [DIR], --dir [DIR]
                        Directory, or parent directory that contains subdirectories, of InsetChart.json files
-t [TITLE], --title [TITLE]
                        Title of Plot
-o OUTPUT, --output OUTPUT
                        If provided, a directory will be created and images saved to the folder. If not provided, it
                        opens windows.

    Note

    If you are executing these commands via SSH or on Codespaces, you will need to use the -o or --output option to create an image file that you can view.

  2. Execute the following command to plot the data in InsetChart.json:

    1
    python -m emodpy_hiv.plotting.plot_inset_chart -d results\my_first_run\my_first_suite--0\InsetChart

    1
    python -m emodpy_hiv.plotting.plot_inset_chart -d results/my_first_run/my_first_suite--0/InsetChart

    This should produce an image or window that looks like the following:

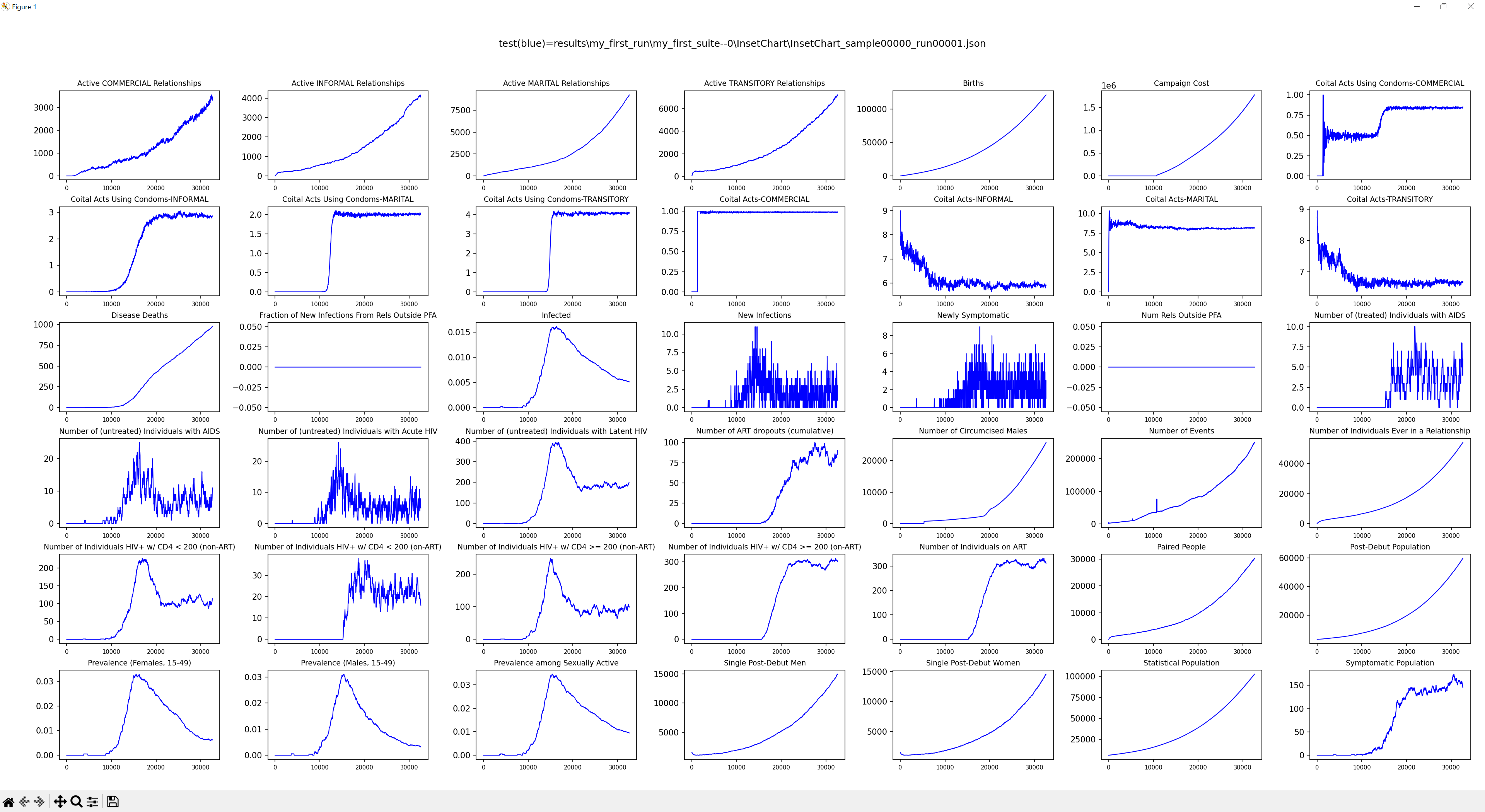

    Inset Chart

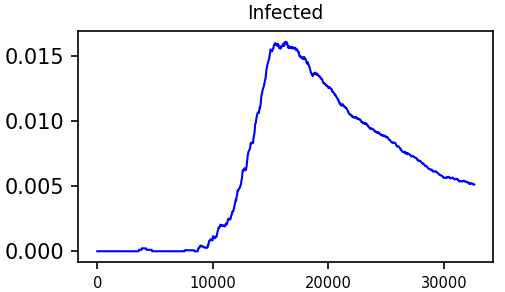

    If we look at the plot in column three, row three, you see something like the following:

    Infected

    where prevalence goes up to about 1.5% in the middle of the simulation and then declines to about 0.5%.

Next up: Modifying the simulation

Now that you have run EMOD once, investigate the other tutorials where you can modify the simulation and run the model.
