Modify reports

Reports are output (files) generated by EMOD. There are multiple built-in EMOD reports that are configured by Python code as well as the ability to create custom reports for a project.

Overview

Reports are specified as Python code in a country model or a frame that builds from one. Reports that are frequently used and/or infrequently modified for a given country model are often located in it. Project-specific reports or custom configurations of common reports are typically located in the config.py file in a frame.

Important

The more data items and/or stratification levels a report is configured to capture the larger the files generated. Keep reporting configurations as minimal as useful for a project to avoid massive files that are difficult to process.

Prerequisites

This tutorial requires you to have done the following:

Modify an existing report configuration

Here we demonstrate overriding the existing configuration of a report in a project frame that utilizes the ZambiaForTraining country model.

The ZambiaForTraining country model class exists in: emodpy_hiv/countries/zambia.py. The following snippet from the ZambiaForTraining country model (it inherits from class Zambia above it) indicates its default specification of the InsetChart report:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
@classmethod
def build_reports(cls, reporters: Reporters) -> Reporters:
    reporters = super().build_reports(reporters=reporters)

    # ...

    reporters.add(InsetChart(reporters_object=reporters,
                             has_ip=None,  # default
                             has_interventions=None,      # default
                             include_pregnancies=False,   # default
                             include_coital_acts=True,    # default
                             event_channels_list=["NewInfectionEvent"]))

    # ...

If we wish to override this behavior in a project frame without modifying the country model we will need to override it in our frame. Reports are specified as part of the EMOD config file, so we edit the frame file:config.py. This file typically contains (at minimum) the following function definition ready for us to use:

1
2
3
def build_reports(reporters: Reporters):
    reporters = country_model.build_reports(reporters)
    return reporters

Important

Each report can only have at most ONE configuration. Duplicative configurations will generate an error.

First, remove the existing report that you do not want. Then we add a new definition of the report to replace it. For example, if you want to add information about pregnancies and potential mothers in the model, copy/paste the InsetChart definition from the ZambiaForTraining country model (again, it inherits this from class Zambia, above it) and modify the appropriate parameter (include_pregnancies=True) (labeled below with NEW CODE):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
def build_reports(reporters: Reporters):
    from emodpy_hiv.reporters.reporters import InsetChart

    reporters = country_model.build_reports(reporters)

    # Remove default built-in InsetChart configuration
    reporters.config_reporters = [reporter for reporter in reporters.config_reporters
                                  if not isinstance(reporter, InsetChart)]

    # Add new InsetChart configuration that records pregnancy information
    reporters.add(InsetChart(reporters_object=reporters,
                             has_ip=None,  # default
                             has_interventions=None,  # default
                             # NEW CODE
                             include_pregnancies=True,  # NOT the default
                             include_coital_acts=True,  # default
                             event_channels_list=["NewInfectionEvent"]))

    return reporters

Future executions of EMOD using this frame will now generate an InsetChart.json output file containing pregnancy related data.

Run EMOD

1
python -m emodpy_workflow.scripts.run -f baseline -N ReportUpdate1 -o reports_output1 -p ContainerPlatform -d output/InsetChart.json

Plot InsetChart.json

1
python -m emodpy_hiv.plotting.plot_inset_chart reports_output1/ReportUpdate1--0/InsetChart/InsetChart_sample00000_run00001.json

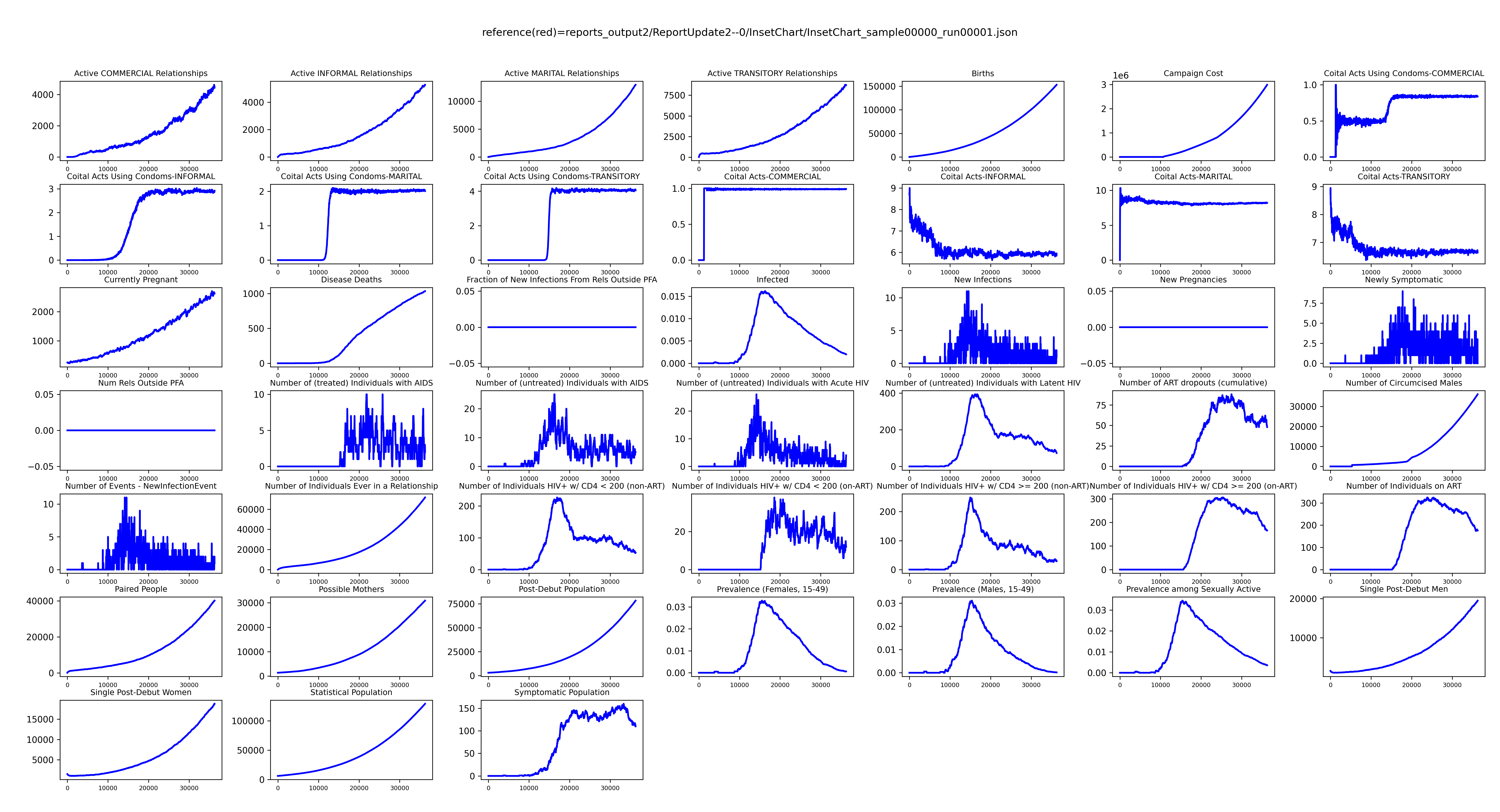

Example result with pregnancy related information:


Adding a new report configuration

Suppose we now want to add a project-specific report (ReportRelationshipEnd) that is not already included in the ZambiaForTraining country model or our frame config.py. We will need to add the report in the build_reports function in our frame. Building on the prior example, we edit the frame config`.py like so (labeled below with NEW CODE):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
def build_reports(reporters: Reporters):
    # NEW CODE: Added import of ReportRelationshipEnd
    from emodpy_hiv.reporters.reporters import InsetChart, ReportRelationshipEnd

    reporters = country_model.build_reports(reporters)

    # Remove default built-in InsetChart configuration
    reporters.config_reporters = [reporter for reporter in reporters.config_reporters
                                  if not isinstance(reporter, InsetChart)]

    # Add new InsetChart configuration that records pregnancy information
    reporters.add(InsetChart(reporters_object=reporters,
                             has_ip=None,  # default
                             has_interventions=None,  # default
                             include_pregnancies=True,  # NOT the default
                             include_coital_acts=True,  # default
                             event_channels_list=["NewInfectionEvent"]))

    # NEW CODE
    # Add ReportRelationshipEnd report
    reporters.add(ReportRelationshipEnd(reporters_object=reporters))

    return reporters

Future executions of EMOD using this frame will now generate an output/RelationshipEnd.csv output file containing information regarding the end of modeled relationships.

Run EMOD

1
python -m emodpy_workflow.scripts.run -f baseline -N ReportUpdate2 -o reports_output2 -p ContainerPlatform -d output/InsetChart.json,output/RelationshipEnd.csv

The result will look something like this sample:

1
2
3
4
5
6
7
Rel_ID,Node_ID,Rel_start_time,Rel_scheduled_end_time,Rel_actual_end_time,Rel_type (0 = TRANSITORY; 1 = INFORMAL; 2 = MARITAL; 3 = COMMERCIAL),Is_rel_outside_PFA,male_ID,female_ID,male_age,female_age,num_total_coital_acts,Termination_Reason
2,10,0,17.4064,30.4167,0,F,2011,3451,27.9431,24.5602,14,BROKEUP
24,4,0,23.7031,30.4167,0,F,3405,2075,19.2884,15.1166,12,BROKEUP
26,3,0,22.5888,30.4167,0,F,2084,14,15.0312,15.8127,6,BROKEUP
7,9,0,52.7734,60.8333,0,F,2790,5530,31.0045,31.9924,18,BROKEUP
58,8,30.4167,55.2886,60.8333,0,F,4329,1749,28.4726,22.4222,11,BROKEUP
15,5,0,47.0391,60.8333,0,F,1046,5376,19.7827,14.0584,19,BROKEUP
