Modify campaign: Modify country model

Country model basics

A country model in emodpy-hiv encapsulates campaign logic specific to a setting (like Zambia and ZambiaForTraining). Subclassing allows you to override methods like add_state_HCTUptakeAtDebut() to customize intervention logic.

You can find country models in the emodpy_hiv/country directory. Each country model is a subclass of the base Country class and implements methods to define the cascade of care and other interventions. You can create a new country model by subclassing an existing one and overriding specific methods to change behavior. This allows you to tailor the campaign logic to different settings or scenarios, which has more control than editing the campaign.py inside the frame. Moreover, country models are inherently more shareable and reusable between researchers as they can be added to emodpy-hiv for future projects.

In this tutorial, we will create a new country model for ZambiaWithLongLastingPrep by subclassing the ZambiaForTraining country model and modifying the add_state_HCTUptakeAtDebut() method to distribute a long-lasting form of PrEP at sexual debut.

Prerequisites

Before starting this tutorial, please complete the following:

Modify the campaign by changing the country model

a. Create new frame

Make a new frame with ZambiaWithLongLastingPrep country model by running the following command in the project directory:

1
python -m emodpy_workflow.scripts.new_frame --country ZambiaWithLongLastingPrep --dest ZambiaWithLongLastingPrep_coc

Important

Since ZambiaWithLongLastingPrep is a country model that doesn't exist yet, the emodpy_workflow does not know where to find it. You will get a warning saying that this country model cannot be found. This warning can be ignored for now, as you will creating it in the next section.

b. Create ZambiaWithLongLastingPrep country model

In the ZambiaWithLongLastingPrep_coc directory, create a new country model called ZambiaWithLongLastingPrep by subclassing the ZambiaForTraining Country Model and override add_state_HCTUptakeAtDebut() method to distribute a long-lasting form of PrEP at sexual debut, followed by a decision point for HIV testing uptake. The long-lasting PrEP is distributed starting in 2025, and the HIV testing uptake decision point is triggered by a new event, Enter_Health_Care_System, which is broadcast when individuals receive the long-lasting PrEP. The HIV testing uptake decision point stops listening for the STIDebut event after 35 years (i.e., after 2025).

Here are the detailed steps:

  1. Create a new Python file named zambia_withlong_lasting_prep.py in the frames/ZambiaWithLongLastingPrep_coc directory:

    Add the following import statements at the top of the file:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
    import emod_api
from emodpy_hiv.campaign.distributor import add_intervention_triggered
from emodpy_hiv.campaign.individual_intervention import (
  HIVSigmoidByYearAndSexDiagnostic,
  ControlledVaccine,
  BroadcastEvent,
  Sigmoid
)
from emodpy_hiv.campaign.common import CommonInterventionParameters, PropertyRestrictions
import emodpy_hiv.campaign.cascade_of_care as coc
from emodpy_hiv.countries import ZambiaForTraining
from emodpy_hiv.campaign.waning_config import Constant

  2. Define the ZambiaWithLongLastingPrep class that subclasses ZambiaForTraining:

    1
2
    class ZambiaWithLongLastingPrep(ZambiaForTraining):
  country_name = "ZambiaWithLongLastingPrep"
    The next few steps override the add_state_HCTUptakeAtDebut() method to implement the new logic.

  3. Copy the add_state_HCTUptakeAtDebut() Function:

    Copy this function from the Country class and cascade_of_care.py to your new ZambiaWithLongLastingPrep class. Please see Modify Campaign: Minimal Campaign Cascade of Care section for more details on this function.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
    @classmethod
def add_state_HCTUptakeAtDebut(
  cls,
  campaign: emod_api.campaign,
  start_year: float,
  node_ids: list[int] = None
):
  disqualifying_properties = [
      coc.CascadeState.LOST_FOREVER,
      coc.CascadeState.ON_ART,
      coc.CascadeState.LINKING_TO_ART,
      coc.CascadeState.ON_PRE_ART,
      coc.CascadeState.LINKING_TO_PRE_ART,
      coc.CascadeState.ART_STAGING
  ]
  initial_trigger = coc.CustomEvent.STI_DEBUT
  hct_upate_at_debut_pv = coc.CascadeState.HCT_UPTAKE_AT_DEBUT

  # set up health care testing uptake at sexual debut by time
  female_multiplier = 1.0
  uptake_choice = HIVSigmoidByYearAndSexDiagnostic(
      campaign,
      year_sigmoid=Sigmoid(min=-0.005, max=0.05, mid=2005, rate=1),
      positive_diagnosis_event=coc.HCT_TESTING_LOOP_TRIGGER,
      negative_diagnosis_event=coc.HCT_UPTAKE_POST_DEBUT_TRIGGER_1,
      female_multiplier=female_multiplier,
      common_intervention_parameters=CommonInterventionParameters(
          disqualifying_properties=disqualifying_properties,
          new_property_value=hct_upate_at_debut_pv
      )
  )
  add_intervention_triggered(
      campaign,
      intervention_list=[uptake_choice],
      triggers_list=[initial_trigger],
      start_year=start_year,
      property_restrictions=PropertyRestrictions(
          individual_property_restrictions=[['Accessibility:Yes']]
      ),
      node_ids=node_ids,
      event_name='HCTUptakeAtDebut: state 0 (decision, sigmoid by year and sex)'
  )
  return (
      coc.HCT_TESTING_LOOP_TRIGGER,  # return the trigger for the HCTTestingLoop state
      coc.HCT_UPTAKE_POST_DEBUT_TRIGGER_1
  )

  4. Modify Event Listening Duration:

    Adjust the copied function so that it behaves like the baseline, but stops after 35 years or by 2025 (i.e., stop listening for the STIDebut event after that time). In order to do this, set the duration parameter in the add_intervention_triggered() function to 365 * 35 days (35 years) when distributing the uptake_choice intervention. You can modify line 32 - 42 in the copied function to include a duration parameter and set it to 35 years:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
    # stop listing for STIDebut after 35 years.
duration = 365 * 35
add_intervention_triggered(
      campaign,
      intervention_list=[uptake_choice],
      triggers_list=[initial_trigger],
      start_year=start_year,
      property_restrictions=PropertyRestrictions(
          individual_property_restrictions=[['Accessibility:Yes']]
      ),
      node_ids=node_ids,
      event_name='HCTUptakeAtDebut: state 0 (decision, sigmoid by year and sex)',
      duration=duration
  )

  5. Insert Long-Lasting PrEP Distribution:

    Before the normal decision point (the sigmoid choice), begin listening for the STIDebut event, distribute a very long-lasting form of PrEP(ControlledVaccine), and broadcast a new event, Enter_Health_Care_System, starting in the year 2025.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
    # insert a long-lasting ControlledVaccine
laprep_start_year = start_year + duration / 365
vaccine = ControlledVaccine(
   campaign,
   waning_config=Constant(0.99),
   common_intervention_parameters=CommonInterventionParameters(
       disqualifying_properties=disqualifying_properties,
       new_property_value=hct_upate_at_debut_pv
   )
)
broadcast_event = BroadcastEvent(
   campaign=campaign,
   broadcast_event="Enter_Health_Care_System",
   common_intervention_parameters=CommonInterventionParameters(
       disqualifying_properties=disqualifying_properties,
       new_property_value=hct_upate_at_debut_pv
   )
)
add_intervention_triggered(
   campaign=campaign,
   intervention_list=[vaccine, broadcast_event],
   triggers_list=[initial_trigger],
   start_year=laprep_start_year,
   property_restrictions=PropertyRestrictions(
       individual_property_restrictions=[['Accessibility:Yes']]
   ),
   node_ids=node_ids,
   event_name='HCTUptakeAtDebut: LA-PrEP on STI Debut'
)

  6. Update Uptake Choice Based on New Event:

    Modify the distribution of the uptake_choice intervention so it depends on the new Enter_Health_Care_System event starting in year 2025.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
    # distribute the SigmoidByYearAndSexDiagnostic intervention by Enter_Health_Care_System event
add_intervention_triggered(
   campaign,
   intervention_list=[uptake_choice],
   triggers_list=["Enter_Health_Care_System"],
   start_year=laprep_start_year,
   property_restrictions=PropertyRestrictions(
       individual_property_restrictions=[['Accessibility:Yes']]
   ),
   node_ids=node_ids,
   event_name='HCTUptakeAtDebut: state 0 triggered by Enter_Health_Care_System after 2025'
)

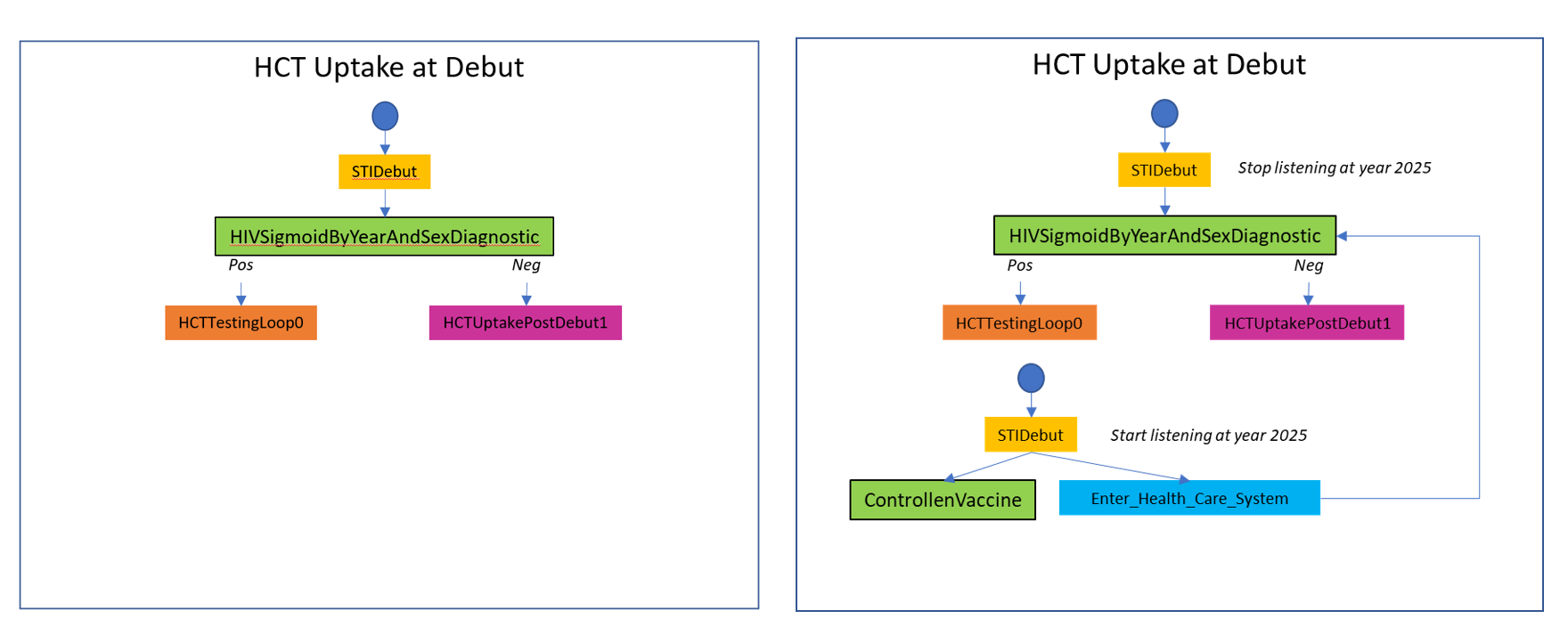

On the left side is the original function from ZambiaForTraining, and on the right is the modified function for ZambiaWithLongLastingPrep.

Comparison of HCT Uptake at Debut function:

ZambiaForTraining (original) ZambiaWithLongLastingPrep (modified)
See comparison below See comparison below


Important

In this tutorial, the ZambiaForTraining class serves as the base for ZambiaWithLongLastingPrep. ZambiaForTraining is similar to the Zambia country model but utilizes a smaller population to accelerate simulation time.

You may select any country model class to use as a base class in your projects.

Here is a complete example of the zambia_withlong_lasting_prep.py file with line numbers for easier reference:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
import emod_api
from emodpy_hiv.campaign.distributor import add_intervention_triggered
from emodpy_hiv.campaign.individual_intervention import (
    HIVSigmoidByYearAndSexDiagnostic,
    ControlledVaccine,
    BroadcastEvent,
    Sigmoid
)
from emodpy_hiv.campaign.common import CommonInterventionParameters, PropertyRestrictions
import emodpy_hiv.campaign.cascade_of_care as coc
from emodpy_hiv.countries import ZambiaForTraining
from emodpy_hiv.campaign.waning_config import Constant


class ZambiaWithLongLastingPrep(ZambiaForTraining):
    country_name = "ZambiaWithLongLastingPrep"

    @classmethod
    def add_state_HCTUptakeAtDebut(
        cls,
        campaign: emod_api.campaign,
        start_year: float,
        node_ids: list[int] = None
    ):
        disqualifying_properties = [
            coc.CascadeState.LOST_FOREVER,
            coc.CascadeState.ON_ART,
            coc.CascadeState.LINKING_TO_ART,
            coc.CascadeState.ON_PRE_ART,
            coc.CascadeState.LINKING_TO_PRE_ART,
            coc.CascadeState.ART_STAGING
        ]
        initial_trigger = coc.CustomEvent.STI_DEBUT
        hct_upate_at_debut_pv = coc.CascadeState.HCT_UPTAKE_AT_DEBUT

        # set up health care testing uptake at sexual debut by time
        # stop listing for STIDebut after 35 years.
        female_multiplier = 1.0
        duration = 365 * 35
        uptake_choice = HIVSigmoidByYearAndSexDiagnostic(
            campaign,
            year_sigmoid=Sigmoid(min=-0.005, max=0.05, mid=2005, rate=1),
            positive_diagnosis_event=coc.HCT_TESTING_LOOP_TRIGGER,
            negative_diagnosis_event=coc.HCT_UPTAKE_POST_DEBUT_TRIGGER_1,
            female_multiplier=female_multiplier,
            common_intervention_parameters=CommonInterventionParameters(
                disqualifying_properties=disqualifying_properties,
                new_property_value=hct_upate_at_debut_pv
            )
        )
        add_intervention_triggered(
            campaign,
            intervention_list=[uptake_choice],
            triggers_list=[initial_trigger],
            start_year=start_year,
            property_restrictions=PropertyRestrictions(
                individual_property_restrictions=[['Accessibility:Yes']]
            ),
            node_ids=node_ids,
            event_name='HCTUptakeAtDebut: state 0 (decision, sigmoid by year and sex)',
            duration=duration
        )

        # insert a long-lasting ControlledVaccine
        laprep_start_year = start_year + duration / 365
        vaccine = ControlledVaccine(
            campaign,
            waning_config=Constant(0.99),
            common_intervention_parameters=CommonInterventionParameters(
                disqualifying_properties=disqualifying_properties,
                new_property_value=hct_upate_at_debut_pv
            )
        )
        broadcast_event = BroadcastEvent(
            campaign=campaign,
            broadcast_event="Enter_Health_Care_System",
            common_intervention_parameters=CommonInterventionParameters(
                disqualifying_properties=disqualifying_properties,
                new_property_value=hct_upate_at_debut_pv
            )
        )
        add_intervention_triggered(
            campaign=campaign,
            intervention_list=[vaccine, broadcast_event],
            triggers_list=[initial_trigger],
            start_year=laprep_start_year,
            property_restrictions=PropertyRestrictions(
                individual_property_restrictions=[['Accessibility:Yes']]
            ),
            node_ids=node_ids,
            event_name='HCTUptakeAtDebut: LA-PrEP on STI Debut'
        )
        # distribute the SigmoidByYearAndSexDiagnostic intervention by Enter_Health_Care_System event
        add_intervention_triggered(
            campaign,
            intervention_list=[uptake_choice],
            triggers_list=["Enter_Health_Care_System"],
            start_year=laprep_start_year,
            property_restrictions=PropertyRestrictions(
                individual_property_restrictions=[['Accessibility:Yes']]
            ),
            node_ids=node_ids,
            event_name='HCTUptakeAtDebut: state 0 triggered by Enter_Health_Care_System after 2025'
        )
        return (
            coc.HCT_TESTING_LOOP_TRIGGER,  # return the trigger for the HCTTestingLoop state
            coc.HCT_UPTAKE_POST_DEBUT_TRIGGER_1
        )

c. Update frame to use new country model

Now the ZambiaWithLongLastingPrep country model has been created, it is not yet recognized by emodpy-workflow or emodpy-hiv. To use this new country model in the ZambiaWithLongLastingPrep_coc frame, you need to update the frame to reference it. For simplicity in this tutorial, move the file to the frame directory and import it directly in campaign.py.

Important

Ideally, if you want to make the new country model reusable, you can put it in the emodpy_hiv/country directory and import it in campaign.py. Please see step g for more details. For the current step in this tutorial, we will keep it simple and just move the file to the frame directory.

Modify the import statement in campaign.py, config.py, and demographics.py to import the ZambiaWithLongLastingPrep country model:

In each file, comment out the current country model import line(line 1) and replace it with an import for ZambiaWithLongLastingPrep (line 2 - 4).

1
2
3
4
# from emodpy_hiv.countries import ZambiaWithLongLastingPrep as country_model
import sys, os
sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
from zambia_withlong_lasting_prep import ZambiaWithLongLastingPrep as country_model

d. Run EMOD

Now you can run EMOD with the new ZambiaWithLongLastingPrep_coc frame:

1
python -m emodpy_workflow.scripts.run -N ZambiaWithLongLastingPrep -f ZambiaWithLongLastingPrep_coc -o results/ZambiaWithLongLastingPrep_coc -p ContainerPlatform
Please see the run EMOD tutorial for more details on this command.

e. Plot InsetChart

After running the simulation, you can examine the results by plotting the InsetChart to compare the ZambiaWithLongLastingPrep_coc frame with the baseline.

  1. Download the InsetChart to the results/ZambiaWithLongLastingPrep_coc directory:

    1
    python -m emodpy_workflow.scripts.download -d output/InsetChart.json -r results/ZambiaWithLongLastingPrep_coc/experiment_index.csv -p ContainerPlatform

  2. Use the plotting tool to compare the output with the baseline:

1
python -m emodpy_hiv.plotting.plot_inset_chart results/my_first_run/my_first_suite--0/InsetChart/InsetChart_sample00000_run00001.json -d results/ZambiaWithLongLastingPrep_coc/ZambiaWithLongLastingPrep--0/InsetChart/ -t "InsetChart-ZambiaWithLongLastingPrep_coc" -o images/ZambiaWithLongLastingPrep_coc
Here is an example of what you might see in the InsetChart comparing baseline and ZambiaWithLongLastingPrep_coc: ZambiaWithLongLastingPrep_cc.png

You should see prevalence drops but costs go up after year 2025 when the long-lasting PrEP is introduced. The red line is the baseline and the blue line is the ZambiaWithLongLastingPrep_coc frame.

f. Plot ReportHIVByAgeAndGender

Next, we plot the number of infected people from ReportHIVByAgeAndGender across ages to highlight that it takes decades for older age group infection counts to stabilize in response to the ZambiaWithLongLastingPrep campaign.

  1. Download the ReportHIVByAgeAndGender to the results/ZambiaWithLongLastingPrep_coc directory:

    1
    python -m emodpy_workflow.scripts.download -d output/ReportHIVByAgeAndGender.csv -r results/ZambiaWithLongLastingPrep_coc/experiment_index.csv -p ContainerPlatform

  2. Visualize infection counts across age groups:

1
python -m emodpy_hiv.plotting.plot_hiv_by_age_and_gender results/ZambiaWithLongLastingPrep_coc/ZambiaWithLongLastingPrep--0/ReportHIVByAgeAndGender/ -p prevalence -a -m -o images/ZambiaWithLongLastingPrep_coc
Here is an example of what you might see in the ReportHIVByAgeAndGender for ZambiaWithLongLastingPrep_coc frame: ZambiaWithLongLastingPrep_cc_age_group.png

g. Optional: Public ZambiaWithLongLastingPrep country model

If you want to make the ZambiaWithLongLastingPrep country model reusable, you can put it in emodpy-hiv and use it in emodpy-workflow. Please refer to How to publish a new country model for more details.

Conclusion

The 3 campaign tutorials demonstrated how to modify campaign logic in EMOD simulations using emodpy_workflow, including creating minimal campaigns, adding interventions directly, and customizing country models for advanced scenarios. By mastering these techniques, you can tailor simulations to specific research questions and programmatic needs.

For further customization, refer to the following tutorials:

Combining these approaches enables comprehensive control over your EMOD workflows and simulation outcomes.
