Ingest form

An ingest form is a multi-sheet Excel spreadsheet that organizes reference data and sets analysis controls for the calibrate command. It controls the non-iterative aspects of a calibration process, while the calibrate command arguments control iteration. It is a central component of every emodpy-workflow project.

This tutorial guides the filling of a blank ingest form. One is added to every project created by the new_project command at calibration/ingest_forms/calibration_ingest_form.xlsm.

Ingest Form Sheets

All colored spaces on all sheets are utilized by emodpy-workflow. The colors themselves do not matter, but the default colored space denotes which sheet cells are interpreted. Any default white space is not interpreted and can be used for anything, for example, calculations, notes, etc.

Important

Default-colored spaces in an ingest form are interpreted by emodpy-workflow and default white spaces are not.

Excel formulas are not allowed in any interpreted cells, as they cannot be processed by emodpy-workflow. In order to use formula-derived values in an interpreted cell, one should perform the calculation in uninterpreted white space and then copy-paste-by-value into the interpreted cells

Important

Interpreted cells in an ingest form can only contain values, never formulas.

Site Sheet

The Site sheet contains information that is required for mapping reference obvervational data to the calibration simulations.

  • Site_name: Users can set this to anything

The following values are used for scaling the simulation populations to real-world values in order to make model results comparable to count-based observations.

  • Population: Integer number of people
  • Year: The integer year containing this population
  • Age bin: The age bin of the population count. See age bin format reference for details.

The following values tell EMOD how to map place names used in observations to model nodes.

  • Node number: The integer id to use for the simulation nodes, must be at least 1.
  • Node name: The name of the node with the corresponding node number.

Important

The node numbers and names must correspond exactly to the demographics data being used. Please refer to the country model demographics code that will be used.

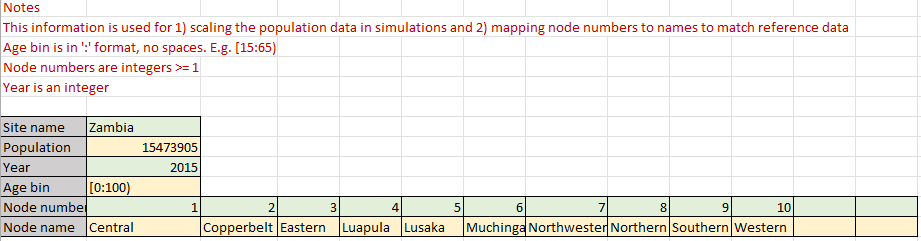

The following example indicates that the ingest form is for a 10-node EMOD Zambia project, utilizing 2015 population counts of all individuals 0 <= age < 100 for simulation scaling purposes.

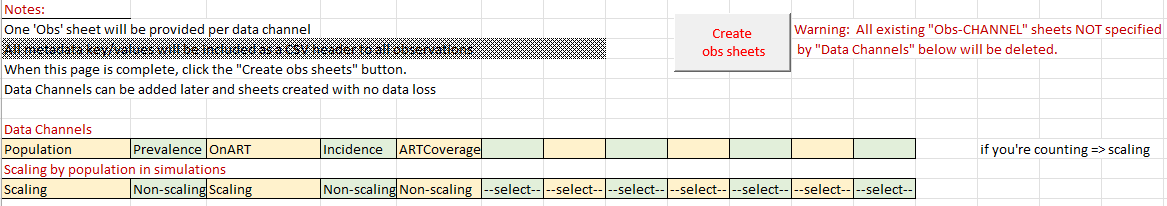

Observations metadata

The Observations metadata sheet serves as the beginning of generating the observations sheets. All observational data channels that will be entered in the ingest form must be entered on this sheet as a "Data Channel". The current accepted values are:

  • Population
  • Prevalence
  • OnART
  • Incidence
  • ARTCoverage (or alternately, ARTPrevalence)

For each channel specified, the corresponding scaling-type must be set from the drop-down menus, either Scaling or Non-scaling. Scaling means the data channel scales with population (for example, a population count) and Non-scaling means it does not (for example, a population fraction).

The sheets for recording observational data for use with calibration are generated by an Excel macro using data on this sheet to help ensure data consistency in the ingest form. The ingest form how-to guide details use of the macro.


Macro-generated Observation Sheets

  1. Define data stratification and uncertainty data channel

    Each observation sheet starts blank and requires the user to specify observational data stratifiers and the type of data uncertainty that will be specified.

    Though the ingest form itself supports any arbitrary stratifier, the emodpy-workflow code that interprets it does not. For now, the stratifiers should always be (case-sensitive):

    • Year: the integer year for the data row.
    • Province: The name of the province/node of the data. This must match a node name on the Site sheet if data is node-specific. If the data is simulation-wide (all-node, usually country-wide), enter All.
    • Gender: Male, Female, or Both.
    • AgeBin: The age range of the data row in the standard age bin format.

    Additional columns starts with three values:

    • weight: Numerical multiplier >= 0.0, blank means 1.0. Alters the importance of the row in calibration scoring.
    • two_sigma: 2 standard errors of count-type data. Delete from "Additional columns" if using fractional data (specified as Scaling).
    • effective_count: Number of independent measurements (people). Delete from "Additional columns" if using count data (specified as Non-scaling).

    Important

    A user must delete either two_sigma or effective_count for the data entry grid to be valid.

  2. Generate the data table

    The data table for recording observational data on an observation sheet is generated by an Excel macro to help ensure data consistency.

    The ingest form how-to guide details use of the macro.

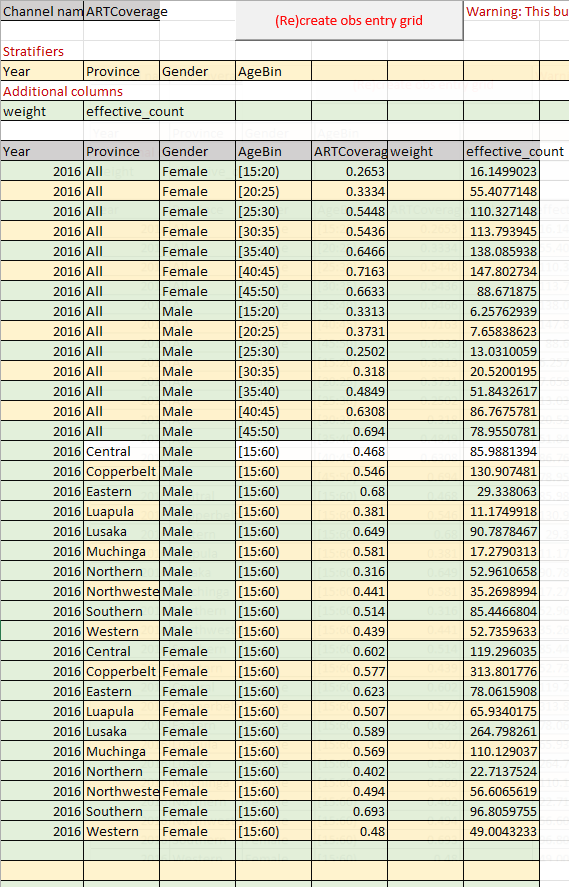

  3. Enter data in the data table

    Any number of rows in the generated data table can be filled and gaps between rows are ok.

    Every element of a used row must be filled, with the exception of weight, which can be left blank (default 1.0).

    The only invalid data entry is a value of zero (count or fraction), as this causes errors in calibration. Simply delete such rows or cut/paste such rows into uninterpreted sheet space as documentation.

    Important

    Do not add data values of 0. Just omit them or put them elsewhere in the observation sheet.

    All fractional data (for example, Prevalence) must be between 0.0 and 1.0 (not percent).

    Important

    All non-scaling, population fractional data must be entered as a float between 0.0 and 1.0 .


Analyzers Sheet

The Analyzers sheet tells the calibration iteration algorithm how to score each calibration simulation. Each row in the colored/interpreted space represents a component of the score to compute. The column meanings are as follows:

  • Channel: The data channel to score. Requires observation data of this channel in the ingest form.
  • Distribution: The type of uncertainty distribution for the observational data. Choose Gaussian for count-type observations with a two_sigma uncertainty channel and Beta for fractional observations with an effective_count uncertainty channel.
  • Provinciality: Whether per-node (Provincial) or all-node (Non-provincial) data will be scored.
  • Age bins: The age bins of data to score. Choose All matching for all observation/simulation matching age bins or Custom to define a subset.
  • Custom age bins: If using Custom age bin scoring, this cell contains a comma-separated list of one or more age bins in the standard age bin format.
  • Weight: How heavily to consider the score of each particular analyzer. The weights of all anlayzers will be normalized and are multipliers (0.0 to 1.0) on the individual analyzer scores.

Important

For clarity, it is recommended the weights sum to 1.0 .

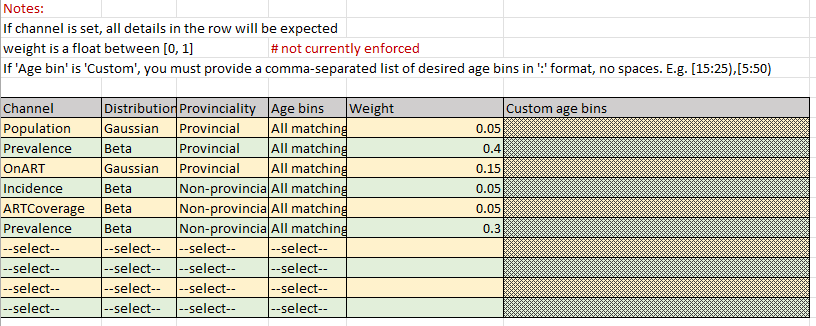

The following example defines six differnt analyzers to use in the scoring of each calibration simulation. It mixes multiple different channels of data, some counting and some fractional, some per-node and some all-node. Note that there are two Prevalence analyzers, one for per-node and one for all-node data; multiple analyzers per channel is a supported feature.

Important

Multiple analyzers per channel using different observational subsets is supported.


Model Parameters Sheet

The Model Parameters sheet tells the calibration iteration algorithm which hyperparameters it can alter during calibration to find better model fits to the provided observations. Each row specifies a hyperparameter and its limits:

  • name: The hyperparameter name (including its label, if applicable).
  • dynamic: Should always be TRUE. Only exists for back-compatibility purposes.
  • initial_value: The value to use for the hyperparameter at the very beginning of a calibration process. It must be within the specified min and max values: min <= initial_value <= max.
  • min: The minimum value the calibration algorithm can use. Must be less than max.
  • max: The maximum value the calibration algorighm can use. Must be greater than min.
  • map_to: If present, only exists for back-compatibility purposes. Does not need to be filled.

Information about definining and using hyperparameters is covered in the using parameterized calls tutorial.

Finding currently available hyperparameters is detailed in the how to list hyperparameters guide.

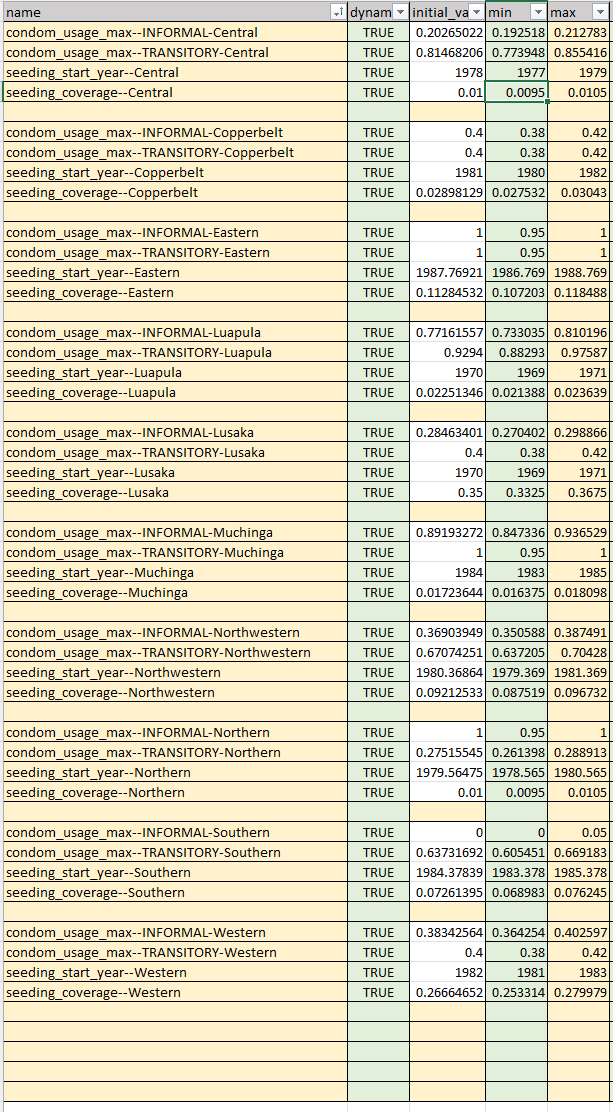

The following example specifies 40 different hyperparameters (with their labels) for use with calibration.


Specifying an ingest form for use in a project

An ingest form is specified for use with calibration via an entry in project-level file manifest.py, detailed in the project reference.
